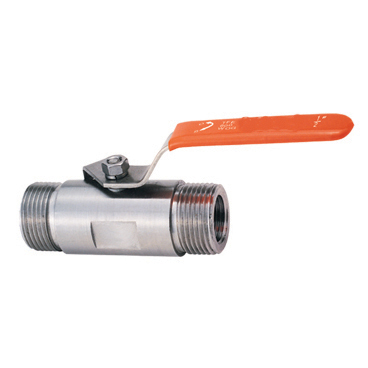

Q21F廣式外螺紋球閥
名稱:Q21F廣式外螺紋球閥
型號:Q21F
口徑:DN15-50
壓力:1000WOG
材質:鑄鋼、不銹鋼
一、Q21F廣式外螺紋球閥
| 性能規范Specifications |
Nominal pressure:PN1.6,2.5,4.0,6.4MPa |
||
| Strength testing pressure:PT2.4,3.8,6.0,9.6,MPa | |||
| 公稱壓力:PN1.6,2.5,4.0,6.4MPa | Seat testing pressure(low pressure):0.6MPa | ||
| 強度試驗壓力：PT2.4,3.8,6.0,9.6,MPa | Applicable media: | ||
| 低壓氣密封試驗壓力：0.6MPa | Q21F-(16-64)C Water.Oil.Gas | ||
| 適用介質：Q21F-(16-64)C 水，油，氣 | Applicable temperature:-29～280℃ | ||
| 適用溫度：-29～280℃ | Applicable media: | ||
| 適用介質：Q21F-(16-64)P 硝酸類 | Q21F-(16-64)P Nitric acid | ||
| Q21F-(16-64)R 醋酸類 | Q21F-(16-64R Acetic acid | ||
| 適用溫度：-40～280℃ | Applicable temperature:-40～280℃ | ||
二、Q21F廣式外螺紋球閥主要零件材料Materials of main parts
|
零件名稱 Description of parts |
Q21F-(16-64)C |
|
|
||||
|
|
|
|
||||
|
|
|
|
||||
|
|
|
|
||||
|
聚四氟乙烯Polytetrafluorethylene(PTEE) | ||||||
|
聚四氟乙烯Polytetrafluorethylene(PTEE) | ||||||
| 三、Q21F廣式外螺紋球閥主要外形尺寸Main outer size |
| DN | G | d | L | M | E | Φ | H | W |
| 8 | 1/4" | 8 | 85 | 20x1.5 | 15 | 22 | 40 | 105 |
| 10 | 3/8" | 8 | 85 | 24x1.5 | 16 | 26.5 | 42 | 105 |
| 15 | 1/2" | 10.5 | 85 | 30x2 | 18 | 31 | 45 | 110 |
|
20 |
3/4" | 13 | 90 | 36x2 | 18 | 37 | 48 | 110 |
| 25 | 1" | 17 | 100 | 42x2 | 20 | 43 | 43 | 110 |
| 32 | 1¼" | 22 | 120 | 52x2 | 20 | 53 | 64 | 135 |
| 40 | 1½" | 26 | 135 | 60x3 | 25 | 62 | 75 | 160 |
| 50 | 2" | 32 | 140 | 72x3 | 25 | 73 | 79 | 170 |
